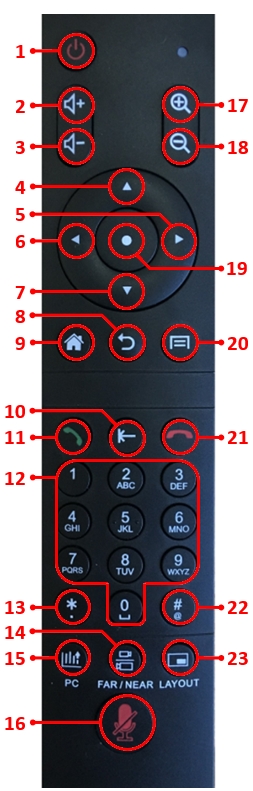

Remote control overview
1 Short press — standby. Long press (3 sec) — system widget.
2 Switch a camera to the control mode.
3 “Picture-in-Picture”. Show or hide video from your camera.
4 Active call — preset load (from 1 to 6). DTMF dial menu — send DTMF.
5 From 1 to 6 — camera presets: long press — save, short press — load.
6 Enable or disable the presentation stream from a terminal.
7 Open the conference control menu.
8 Switch volume controls (speaker or microphone) in the active volume widget.
9 “Picture-in-Picture”. Show or hide another stream.

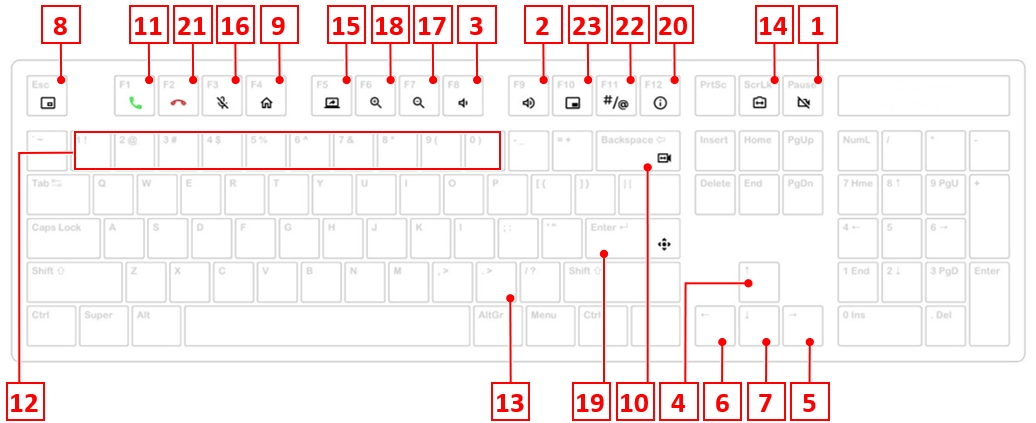

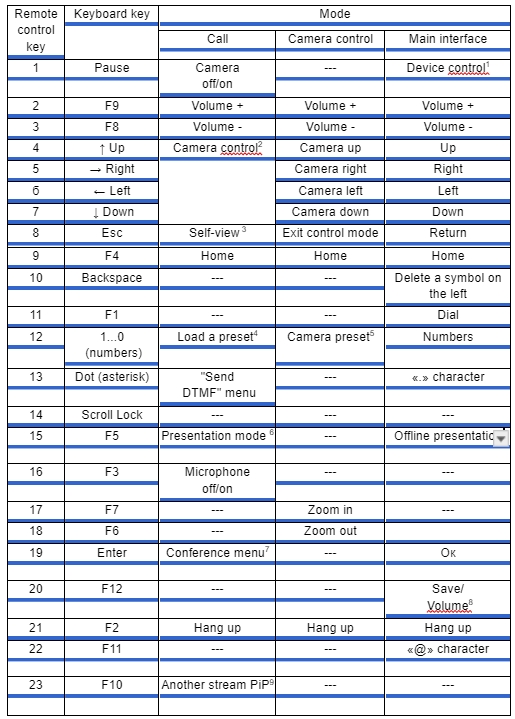

Keyboard overview
Main interface button functions
After the control button name, the number in parentheses indicates the button number on the remote control overview.
“Power” button (1) on short press
The low power consumption mode “Standby” is launched.
“Power” button (1) on long press
Launches the device management widget “System widget”.
Long press — hold the button for 2–3 sec.
PC button (15)
The PC button starts and stops a presentation from a configured video input in the main interface. The presentation is interrupted when receiving an incoming call.
Launching a presentation during a videoconference session is described separately.
“Save” button (20)
Depending on the interface:
- saves changes made on pages where saving is required;
- when the volume widget is active — switches volume controls (speaker/microphone) after pressing the “Volume +” (2) and “Volume –” (3) buttons, including during a conference.
